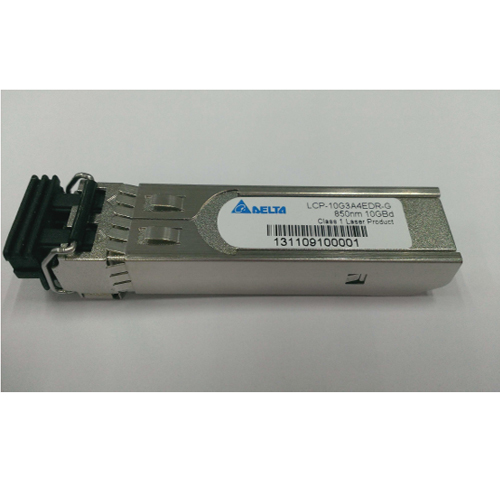

LCP-10G3A4EDRx-G

  • 产品分类:10G光模块
  • 产品简介:全新原装DELTA光模块(台达光模块)LCP-10G3A4EDRx-G, DELTA台达10G光模块, 型号为LCP-10G3A4EDRx-G
  • 订购热线:0755-81481899
产品介绍

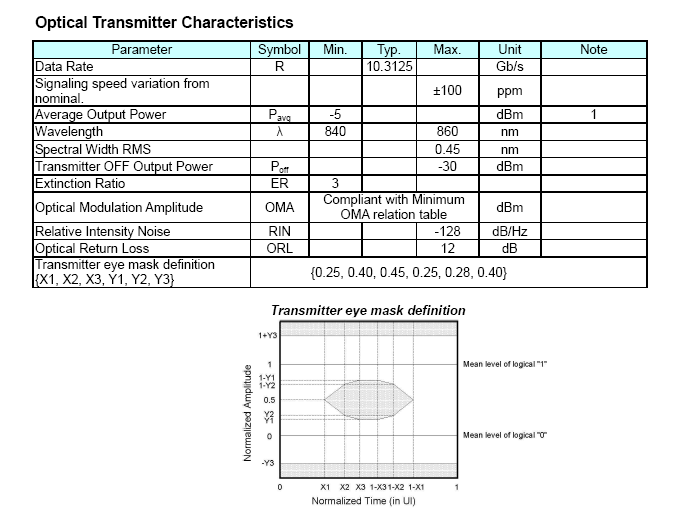

    Optical Transmitter Characteristics

    Description

    The LCP-10G3A4EDRx-G is a hot pluggable 10Gbps small form factor plus transceiver module integrated with the high performance 850nm VCSEL transmitter, high sensitivity PIN receiver and limiting amplifier for 10Gbps applications. It is compliant with the SFF-8431 SFP+ Electrical Multi-source Agreement (MSA) with five digital monitoring functions: Temperature, Vcc, Tx optical power, Tx laser bias current and Rx received optical power.

    FEATURES

    ·RoHS compliant

    ·Compliant to SFP+ Electrical MSA SFF-8431

    ·Compliant with SFF-8472 MSA

    ·Standard LC duplex fiber-optic connector

    ·I2C for integrated Digital Optical Monitoring

    ·Power consumption 1W

    Applications

    ·10G LAN switch

    ·10G Ethernet switch/router

    ·10G Fiber channel

    ·SAN applications

     LCP-10G3A4EDRx-G

    LCP-10G3A4EDRx-G

    LCP-10G3A4EDRx-G

    For more information, please contact the sales for details.更多信息,请联系销售员索取详细资料!
