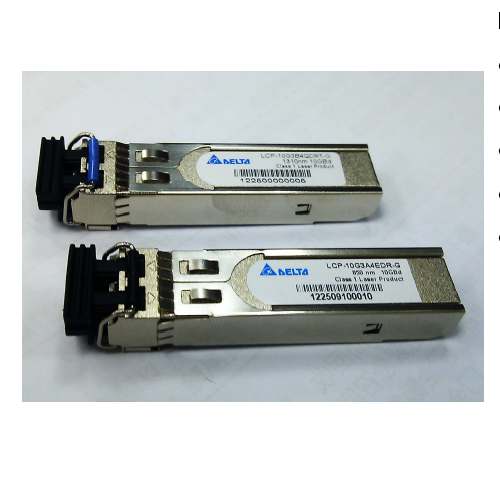

10GBASE-LR SFP+ Optical Transceiver
Description
The LCP-10G3B4QDRx-G is a hot pluggable 10Gbps small form factor plus transceiver module integrated with the high performance 1310nm DFB Laser transmitter, high sensitivity PD-TIA receiver for 10Gbps applications. It is compliant with the SFF-8431 SFP+ Electrical Multi-source Agreement (MSA) with five digital monitoring functions: Temperature, Vcc, Tx optical power, Tx laser bias current and Rx received optical power.
FEATURES
·RoHS compliant
·Compliant to SFP+ Electrical MSA SFF-8431
·Compliant with SFF-8472 MSA
·Standard LC duplex fiber-optic connector
·I2C for integrated Digital Optical Monitoring
Applications
·10G LAN switch
·10G Ethernet switch/router
·10G Fiber channel
·SAN applications
Performance
·LCP-10G3B4QDRx-G:Link distance up to 10km over 9um SMF
For more information, please contact the sales for details.更多信息,请联系销售员索取详细资料!
