SFP+ Active Optical Cable

Description

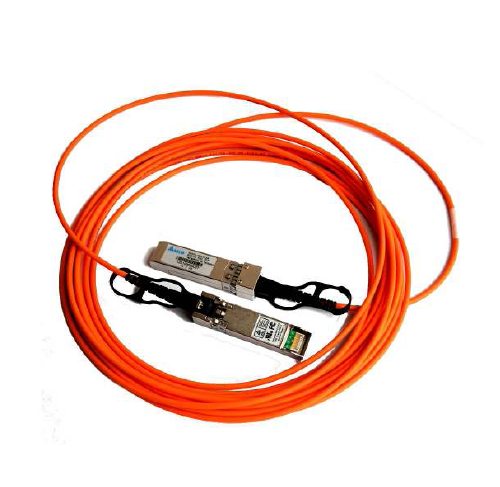

The SAOC-10G1F2A is a 10Gb/s, hot pluggable active optical cable for Ethernet data transmission. It

provides full duplex operation and supports distance up to 100 meters. Each SAOC-10G1F2A is composed of optical transceivers in both ends and multimode fiber cable in between. This integrated optical module solution removes the complicated optical fiber interface and brings friendly and intuitive electrical-to-electrical interface to users. SAOC-10G1F is designed to meet the requirements of high speed, high density and low power consumption for applications in today’s data centers.

Features

·RoHS-6 compliant

·High speed / high density: support up to 10 Gb/s bi-directional operation

·Compliant to industrial standard SFP MSA

·Low power consumption : less than 1.0 W per end

·Hot-pluggable, light weight cable, small bending radius and distance up to 100 meters facilitate the installation and cable management

·Reliable VCSEL and PIN photonic devices

·I2C standard management interface

·Excellent high speed signal integrity

Application

·10G Ethernet

·Proprietary high speed, high density data transmission.

·Switch and router high speed backplane interconnect

·High performance computing, server and data storage.

For more information, please contact the sales for details.更多信息，请联系销售员索取详细资料！
